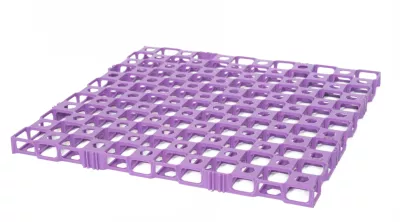

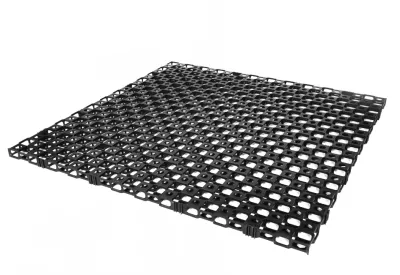

30mm Drainage Cell
Drainage Cell offers high compressive strength, rapid flow rate, and long-lasting durability for efficient stormwater management.
Baozhen30mm drainage cell provides a permanent, structural and non-clogging void between the building structure and the soil profile that will not collapse or distort. The void enables a direct flow of water to designated outlets resulting in superior drainage efficiency compared to conventional gravel filled systems.
Item No.: BZ10010030

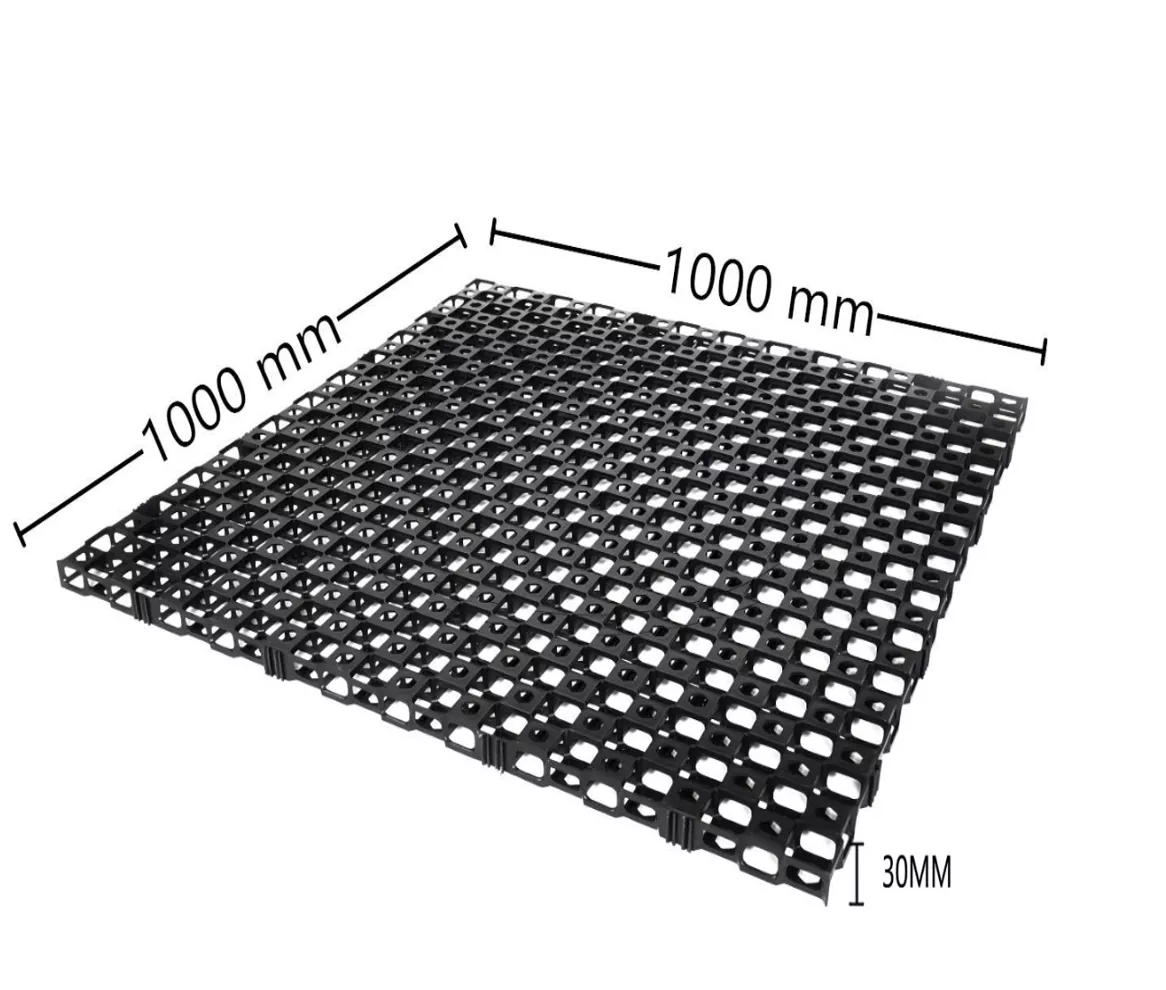

Dimensions ：500mm x 500mm x 30mm
1000mm x1000mm x30mm
Weight: 3.6kgs/sqm,
Surface Void: 75%
Compressive strength: 250t/m2
Flow Rate: 14,400 litres/h/sqm @ 1% fall (508.5/h/ft2)
Temperature: -30°C + 120°C
Material: Recycled Polypropylene
Chemical properties:Unaffected by moulds and algae,
soil-bourne chemicals and bacteria
Drainage Cell is supplied in a 1.1mx 1.1m panels
Applications: Roof gardens/Podiums/Retaining walls/
Civil works/Sports felds/Balcony drainage
Why Use Drainage Cell :
Improves drainage efficiency/reducing water buildup
Supports sustainable construction practices
Easy to transport, cut, and install on-site
Ensures long-term performance with chemical resistance
